FormalRV

Formally-verified resource estimation for fault-tolerant Shor's algorithm — from the logical algorithm down to the physical surface-code device.

📖 API docs: https://yezhuoyang.github.io/FormalRV/

▶ New here? Start with FormalRV.StandardShor — the standard, textbook Shor + surface-code lattice surgery, curated as a four-step learning path (guide). Read it before the advanced low-overhead papers.

---

Goal

Put Shor's algorithm, its arithmetic circuits, the logical (Pauli-product) layer, and the quantum-error-correction stack into Lean 4; prove what can be proven, emit the verified circuits as runnable code, and benchmark seven state-of-the-art resource estimates against machine-checked bounds — making the residue that cannot be proven explicit.

Achievements

• Axiom-free success bound. Shor_correct_var / Shor_correct_verified_no_modmult_axioms (start at Shor/Main.lean): order-finding succeeds with probability ≥ κ/(log₂N)⁴, κ = 4·e⁻²/π². Its #print axioms is only Lean's three standard axioms — no project axioms, no sorry — instantiated with a constructive modular multiplier (no oracle).
• Proof → runnable code. The same circuits FormalRV proves correct are emitted as OpenQASM 2/3 and Stim, and an independent tool (Qiskit, Stim) re-verifies the artifact without trusting Lean — emitted gate counts match the proved counts; Stim has_flow re-checks each surgery. The verified schedule also compiles to tqec-validated 3D surface-code lattice-surgery layouts (.glb / ray-traced) via PyCircuits/ls_compile.py.
• Device scheduling + hard resource bounds. A unified FT-scheduling framework (System/FTFramework): the full ~10⁹-op RSA-2048 schedule defined recursively and proven valid for all sizes; a kernel-clean lower bound Q·T ≥ K·fq·prod (≈ 22.4M qubit-hours for RSA-2048) that no schedule can beat; a hardware sensitivity analysis monotone in every device parameter; and a device-program emitter unifying physical operations + system calls, checked against four system invariants.
• Seven-paper corpus. Each estimate is bound to one typed tuple, with a machine-checked bound where the framework allows (table below).

The four-layer stack

  L1  Algorithm        Shor + QPE + modular exponentiation + Ekerå–Håstad   ┐
  L2  Logical gadgets  adder · controlled adder · unary lookup · QFT        │ error
  L3  PPM / logical    Pauli-product measurement · magic-state cultivation  │ bounds
  L4  QEC code         parity-check matrices · stabilizer schedule · surgery ┘ propagate up

Each layer is a Lean structure with an explicit inter-layer contract; three error mechanisms (logical/random, approximation, algorithmic-uncertainty) propagate bounds up to the success theorem.

Worked example — the 2-bit adder, end to end

The smallest non-trivial slice of the whole stack: the verified 2-bit Cuccaro adder cuccaro_n_bit_adder_full 2 0 (proven by cuccaro_n_bit_adder_full_correct: target := a+b, read restored), pushed through every layer onto a zoned hardware architecture, ending in a re-runnable, machine-checked resource verdict. Full detail — the complete OpenQASM, the full PPM program, the 192-SysCall schedule, and a self-verifying parameterized Lean file — lives in Example/. Run it (and re-run it for your own hardware) with:

lake env lean --run Example/Adder2EndToEnd.lean   # type-checks `schedule_fits` + prints the table below

Architecture — 4 zones × 100 logical-patch sites: Data[0,100) · Ancilla[100,200) · Factory[200,300) (|C̄CZ̄⟩ magic) · Routing[300,400); Gate2q‖=1, decoder ‖=4, t_react=10µs — all editable in the EDIT HERE block (change them, re-run, get a new verified verdict).

Verified resource on that architecture — every row machine-checked, nothing taken on trust:

Layer	Resource	Value	Verified by
L2 logical	qubits / Toffoli / T-count	5 / 4 / 28	cuccaro_n_bit_adder_full_correct (+ Qiskit count re-check)
L3 PPM	|C̄CZ̄⟩ magic / joint measurements	4 / 12	compileArithmeticGateToPPM
System	SysCalls / wall-clock	192 / 192 µs	scheduleWallclockUs; fits the architecture via schedule_fits
System	wall-clock lower bound	≥ 72 µs	gate2q_capacity_lower_bound_us (⌈72 Gate2q / 1‖⌉·1µs)

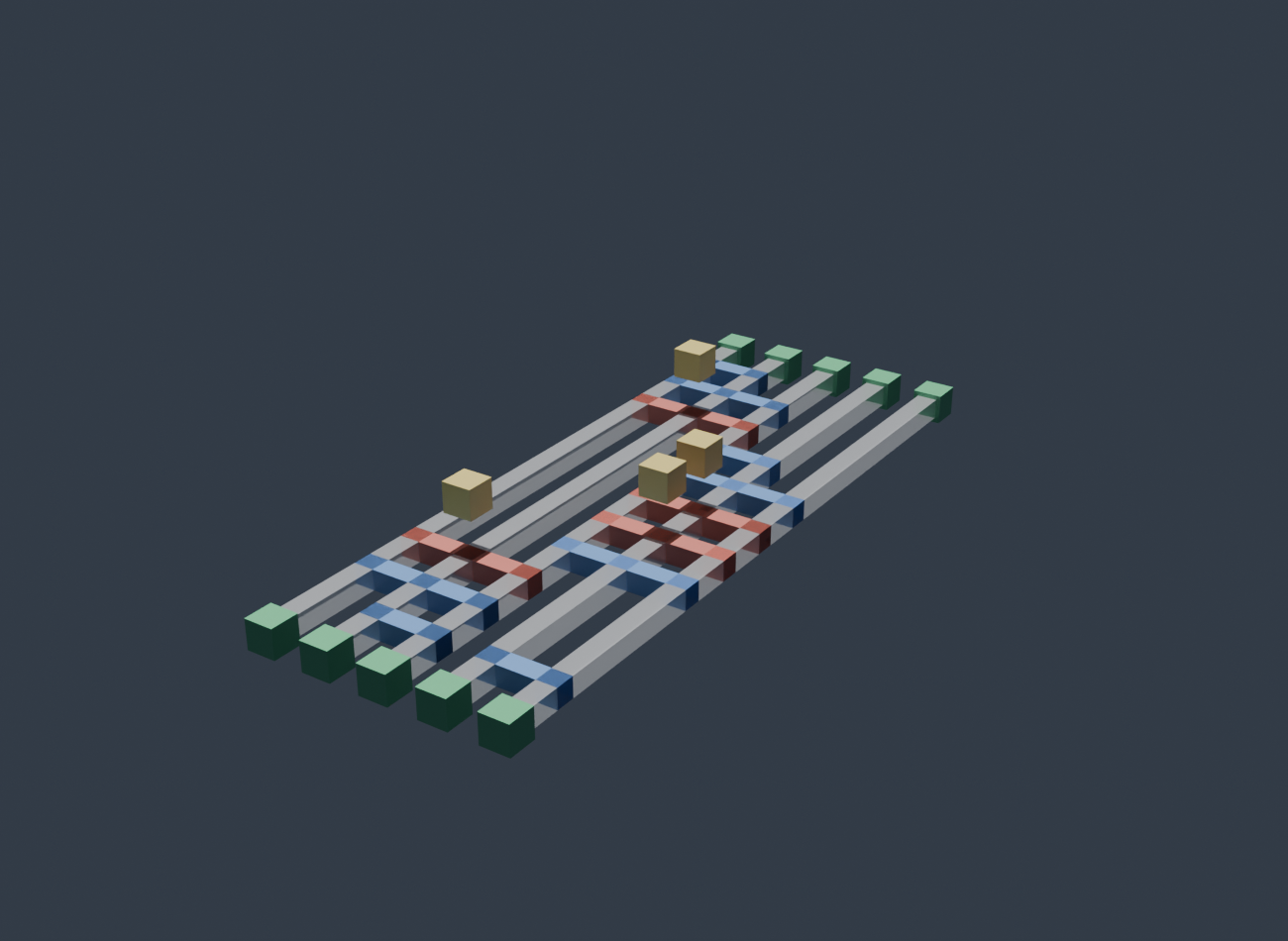

L4 surgery	conflict-free layout / volume	✓ / 60	ls_compile certificate

If you tighten the hardware past feasibility, schedule_fits is rejected — that is the verdict.

…and the FULL adder, end to end, on real neutral-atom hardware

The same 2-bit adder runs as a complete d=3 surface-code lattice-surgery computation on a neutral-atom machine (Example/neutral_atom/) — every layer present, no placeholders:

1. It really computes a+b — the measurement-based realization (real |C̄CZ̄⟩ magic by gate teleportation, measurement-driven Pauli feed-forward) is simulated and matches the adder on all 32 inputs × 30 random measurement branches (logical_adder/verify_mb_adder.py).
2. d=3 lattice surgery — each of the 5 logical qubits is a [[13,1,3]] patch; every gate is the full merged-code syndrome (verified surface3_zz_merge 88 CX / surface3_zzz_merge 131 CX), each Toffoli a real |C̄CZ̄⟩ injection.
3. Detailed system schedule — 192 SysCalls, machine-checked to fit the architecture (schedule_fits), wall-clock 192 µs.

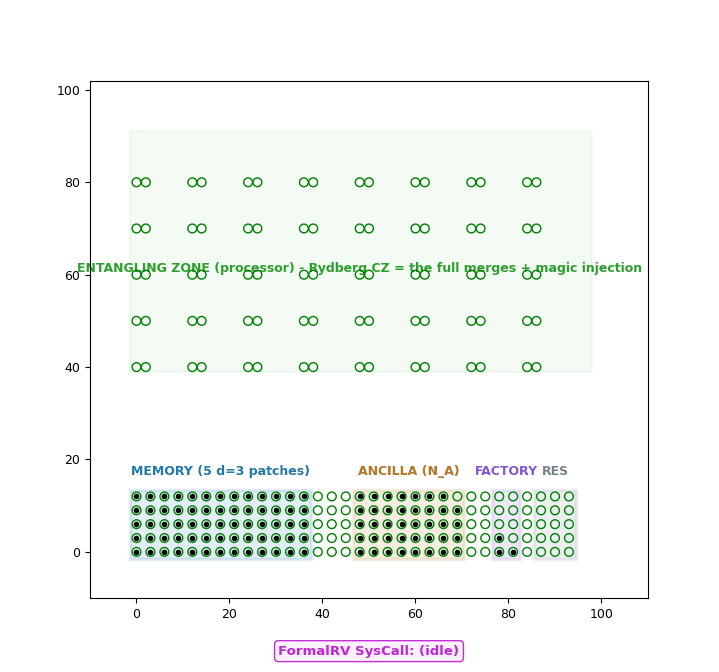

4. Neutral-atom compile (ZAC, HPCA 2025) — 107 atoms (Memory / Ancilla / Factory / Reservoir zones), 1240 CZ, 95 Rydberg stages, ZAC-verified, invariants re-proven under neutral-atom capacities. The GIF shows the atoms physically moving to do it:

Repository layout

Each concern is a folder with its own README.md (purpose, key definitions, key theorems, honest status):

Folder	What it holds
Core/	Gate IR + classical/quantum (matrix) semantics; the 7-T Toffoli = CCX proof
Arithmetic/	adders, modular multiplier, unary lookup — with correctness proofs
Shor/	★ the main theorem (MainAlgorithm/), QPE, phase kickback, IQFT; the reusable Shor→PPM/emit + windowed pipeline
QEC/	qLDPC parity-check matrices, code instances, and derivedK (k = n − rank Hₓ − rank H_z)
PPM/	Pauli-product measurement, Pauli algebra, magic factories
LatticeSurgery/	surgery merge/split + system-call contracts; the reusable surgery gadgets + surface-code Shor pipeline
System/	scheduling / device / resource-bound framework (FTFramework); the reusable cost / decoder / zone / latency models
Framework/	the four inter-layer contract interfaces (L1–L4)
Audit/	one folder per paper (uniform Hardware/Zones/L1–L4/Verifier) — paper-specific only; all general/reusable code lives in the framework folders above
Qualtran/	Qualtran PhysicalParameters data bridge
Codegen/	the verified QASM / device-program emitters

Files are named for their content and kept small (topical modules behind a <Name>.lean umbrella).

Per-paper audit — claim vs. verified

Each paper has its own folder under FormalRV/Audit/ with a uniform structure — Hardware · SystemZones · L1_Algorithm · L2_Arithmetic · L3_PPM · L4_Code · Verifier · README. All general/reusable code lives in the framework folders (LatticeSurgery, Shor, System, QEC, PPM, Framework, …); a paper folder holds only that paper's specific implementation + scheduling and imports only general code — never another paper. Rigor is enforced on build: each folder's Verifier.lean runs #verify_clean, the gate that ACCEPTS a theorem only if its transitive axioms ⊆ {propext, Classical.choice, Quot.sound} — so a sorry or native-tainted axiom makes the build fail. Each layer is exactly one of ✅ verify-clean semantic · ➗ arithmetic-only (decide) · ⬜ documented GAP (never a counted number masquerading as a proof). Verify one paper with, e.g., lake build FormalRV.Audit.Gidney2025. The one cross-cutting ✅ result — order-finding success ≥ κ/(log₂N)⁴, N-parametric — lives in Audit/Peng2022 and is reused by every paper's L1.

Paper folder	Headline claim	What is machine-checked (✅ semantic · ➗ arithmetic · ⬜ gap)
CainXu2026 (focus) — 2603.28627	RSA-2048 in ~10⁴ qubits, ~1 week	✅ modexp PRESERVES the LP code (induction, scale-free) + LP-surgery gadget + lower≤upper soundness + verified resource upper bound + 10⁹-PPM schedule; ➗ k DERIVED from matrices, Eqs E3/E4/E9; ⬜ factory-sharing/parallelism gaps sized
GidneyEkera2021 — 1905.09749	20M qubits, ~8 h	✅ CAPSTONE axiom-free: 19.44M ≤ 20M, 8 h sits 2–3× under the verified time ceiling; ✅ finite-zone invariants (over-budget rejected)
Gidney2025 — 2505.15917	<1M qubits, <1 week	✅ CFS residue-arithmetic engine axiom-clean (faithful RNS, exact CRT, bounded truncation, Ekerå–Håstad); ✅ tally 897,864 < 10⁶; ⬜ Assumption 1 stated-never-asserted; ⬜ quantum half
Pinnacle (webster-2026) — 2602.11457	RSA-2048 in <100k qubits	➗ GB code k=12 DERIVED from matrices ([[72,12,6]]); ✅ RSA instance recorded; ⬜ measurement gadget / magic engine / <100k bound (roadmap, OPEN)
Babbush2026 — 2603.28846	ECC-256 in <500k qubits, 18–23 min	✅ shared bound (confirms modulus-agnostic L1); ➗ verified magic-state spacetime floor; ⬜ first non-RSA, end-to-end OPEN
Xu2024 — 2308.08648	constant-overhead FTQC, 24 ms cycle	➗ the 24,000× cycle-time outlier cross-check; ⬜ tuple (the arch the neutral-atom demo realizes)
Peng2022 (SQIR/Coq) — 2204.07112	machine-checked Shor	✅ the cross-cutting bound lives here — order-finding success ≥ κ/(log₂N)⁴, N-parametric (axiom-clean)

Legend: ✅ Verified semantic theorem · ➗ Arithmetic-only (decide) · ⬜ Recorded/Assumed.

What is proven vs. assumed

Strict honesty taxonomy — only semantic-correctness theorems count as Verified (a gate count on an unverified circuit is just counting symbols):

Machine-checked, no custom axioms: the Shor success-probability chain, the Cuccaro/Gidney adders, the constant modular multiplier, the 7-T Toffoli identity, the QPE peak bound, the Pauli/stabilizer algebra, and the schedule resource lower bound. Out of scope (assumed by citation): decoder correctness & runtime, hardware physics, magic-state distillation internals, and merged-code distance. See each folder's README.md for per-area status.

Build

git clone https://github.com/yezhuoyang/FormalRV && cd FormalRV
lake exe cache get      # prebuilt mathlib (≈ minutes)
lake build              # builds the whole library

Check a theorem's axioms with #print axioms FormalRV.Shor_correct_var (expected: propext, Classical.choice, Quot.sound). Emit + independently re-verify the circuits: lake env lean --run scripts/EmitQASM.lean (→ Qiskit re-counts gates) and lake env lean --run emit_shor_demo.lean (→ Stim has_flow).

License

MIT © 2026 John ye. Built on mathlib; the Shor layer ports SQIR; Qualtran/ bridges Qualtran.
